87D 系列 15瓦 1.5KV隔离电压 4:1宽输入 三输出 直流对直流电源转换器

功能&特点

• 15瓦 隔离电压输出。

• 通过UL 60950-1 安规认证。

• 单输出、双输出与三输出。

• 效率高达80%。

• 具备遥控开关功能。

• 宽输入4:1电压范围。

• 六面封闭式外壳。

• 1500Vdc隔离电压。

• 可靠度试验:>1,500,000 hrs。

• 操作环境温度:-40℃ 至 +100℃。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Input Voltage	Output 1 Voltage	Output 2 Voltage	Output 3 Voltage
	Vdc	Vdc	Vdc	Vdc
87D-24S05RNL	9-36	5@3A
87D-24S12RNL	9-36	12@1.25A
87D-24S15RNL	9-36	15@1A
87D-24D12RNL	9-36		12@0.625A	-12@0.625A
87D-24D15RNL	9-36		15@0.5A	-15@0.5A
87D-24S05RT12RNL	9-36	5@1.5A	12@0.31A	-12@0.31A
87D-24S05RT15RNL	9-36	5@1.5A	15@0.25A	-15@0.25A
87D-48S05RNL	20-72	5@3A
87D-48S12RNL	20-72	12@1.25A
87D-48S15RNL	20-72	15@1A
87D-48D12RNL	20-72		12@0.625A	-12@0.625A
87D-48D15RNL	20-72		15@0.5A	-15@0.5A
87D-48S05RT12RNL	20-72	5@1.5A	12@0.31A	-12@0.31A
87D-48S05RT15RNL	20-72	5@1.5A	15@0.25A	-15@0.25A

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Types				4:1
Filter	Capacitor

Output Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance				±2	%
Single Voltage Tolerance				±1	%
Dual +Voltage Tolerance				±3	%
Dual -Voltage Tolerance				±1	%
Triple	5V			±5	%
Triple	12V/15V			±2	%
Triple	-5V			±1	%
Short Circuit Protection	Continuous
Line Regulation	Single/Dual(H.L To L.L)			±0.2	%
Load Regulation	Single/Dual (F.L To 1/4F.L)			±1.0	%
Ripple & Noise	BW=DC To 20MHz			100	mVp-p
Line Regulation	Triple(H.L To L.L)			±1.0	%
Load Regulation	Triple(F.L To 1/4F.L)			±0.2	%
Transient response setting time	50% load step change		350		us

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency			100		KHz
Operating Temperature		-40		+100	℃
Humidity	Non Condensing	5		95	%
Cooling	Free air Convection
Case Material	Nickel Coated With Non-Conductive Base or Black Coated Copper With Non-Conductive Base
Weight		60.2			g
Dimensions		50.8 x 50.8 x 10.7			mm
Potting Material		Epoxy (UL94V-0 rated)
Conducted Emissions	EN55022	CLASS A
Radiated Emissions	EN55022	CLASS A

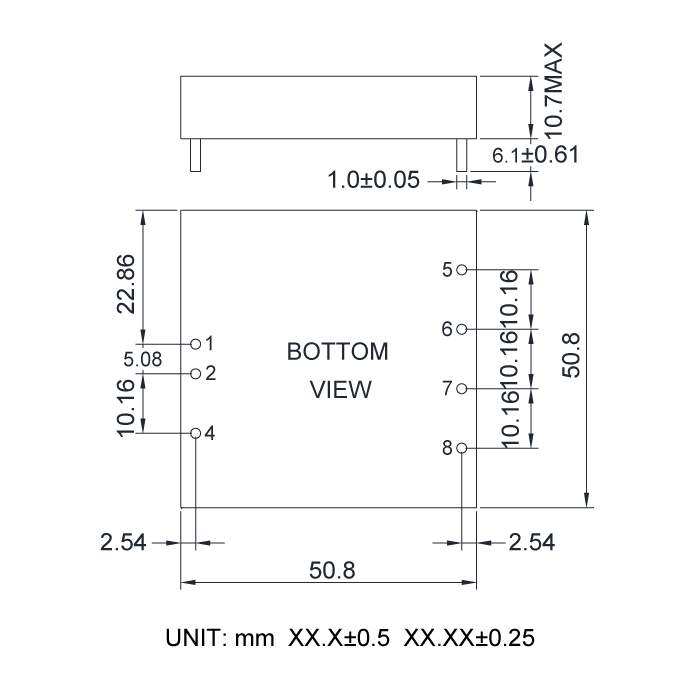

Dimension
