15D 系列 1瓦 1KV隔离电压 直流对直流电源转换器

功能&特点

• 7PIN SIP 和 14PIN DIL 包装。

• 效率高达70%。

• 输出稳压<1.5%。

• 内部为SMD结构。

• 不需外部零组件。

• 工业标准引脚。

• 操作环境温度：-40°C 至 +85°C。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Output Voltage	Output Current	Efficiency	Package Style
	Vdc	mA	% TYP
15D-XXS03RNL	3.3	100	45	1
15D-XXS05RNL	5	100	45	1
15D-XXS09RNL	9	100	55	1
15D-XXS12RNL	12	84	55	1
15D-XXS15RNL	15	67	60	1
15D-XXS03R2NL	3.3	100	45	2
15D-XXS05R2NL	5	100	45	2
15D-XXS09R2NL	9	100	55	2
15D-XXS12R2NL	12	84	55	2
15D-XXS15R2NL	15	67	60	2
15D-XXS24R2NL	24	42	60	2
15D-XXS03R3NL	3.3	100	45	3
15D-XXS05R3NL	5	100	45	3
15D-XXS09R3NL	9	100	55	3
15D-XXS12R3NL	12	84	55	3
15D-XXS15R3NL	15	67	60	3
15D-XXS03R4NL	3.3	100	45	4
15D-XXS05R4NL	5	100	45	4
15D-XXS09R4NL	9	100	55	4
15D-XXS12R4NL	12	84	55	4
15D-XXS15R4NL	15	67	60	4
15D-XXS24R4NL	24	42	60	4

Note:
1. "XX" Is Input Voltage: 05 = 5Vdc, 09 = 9Vdc, 12 = 12Vdc, 15 = 15Vdc, 24 = 24Vdc.
2. Over 24Vdc input voltage, using the 2nd or 4nd package.
3. The input voltage increases, there will be an increase in efficiency.
4. Input 3.3V, then output will be 12V MAX Output 3.3V, then input will be 12V MAX.

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	Vo, Io Nom			±5	%
Filter	Capacitor

Output Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	100% full load			±5	%
Short Circuit Protection	Continuous
Line Regulation	For 1.0% OF Vin		0.25		%
Load Regulation	10% To 100% F.L			1.5	%
Ripple & Noise	BW=DC To 20MHz			100	mVp-p
Transient Response Setting Time	50% load step change		350

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency	Full load, nominalinput		100		KHz
Operating Temperature		-40		+85	℃
Humidity	Non Condensing			95	%
Cooling	Free air Convection
Case Material	DAP
MTBF	MIL-HDBK-217F @25℃	1500000			Hours
Weight	Package 1 / 2 / 3 / 4	2.1 / 2.7 / 2.3 / 3.0			g

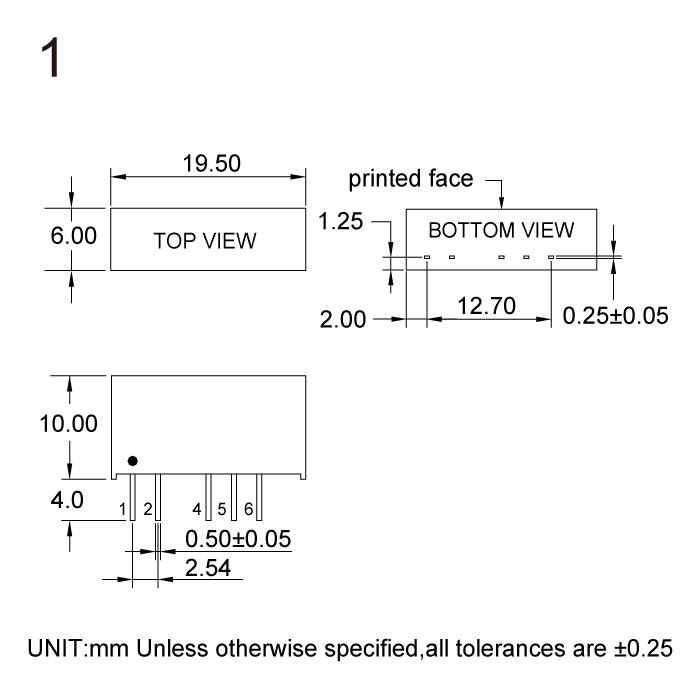

Dimensions	Package 1	19.50 x 6.00 x 10.00			mm

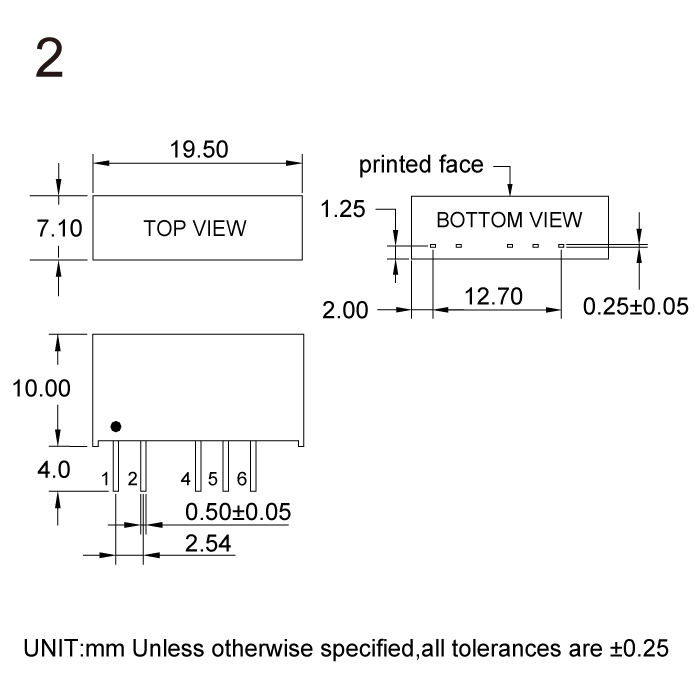

Dimensions	Package 2	19.50 x 7.10 x 10.00			mm

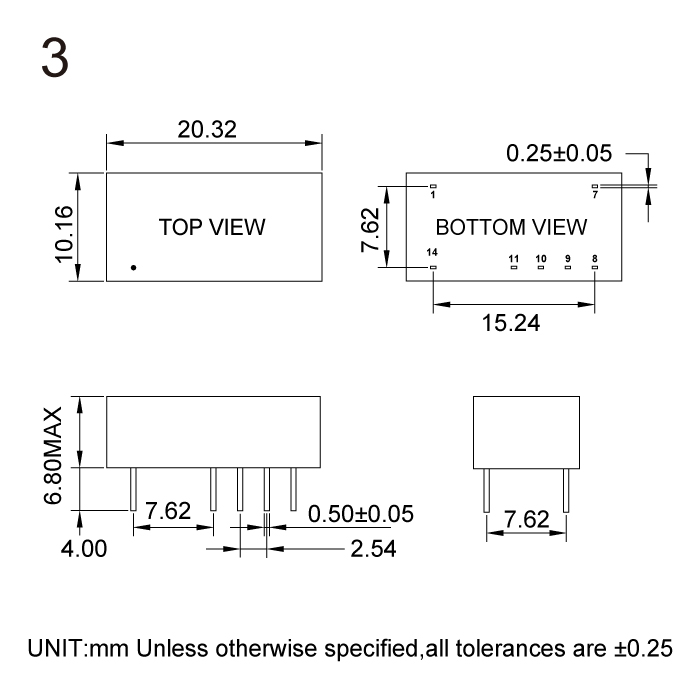

Dimensions	Package 3	20.32 x 10.16 x 6.80			mm

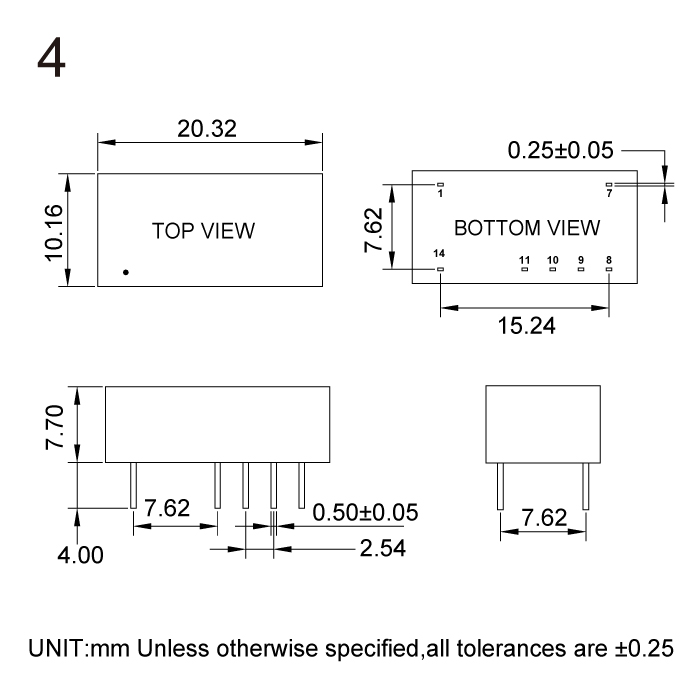

Dimensions	Package 4	20.32 x 10.16 x 7.70			mm

Dimension
