69D 系列 3瓦 1.5KV隔离电压 4:1宽输入 直流对直流电源转换器

功能&特点

• 宽输入4:1电压范围。

• 3瓦 24PIN DIL 包装。

• 效率高达80%。

• 1500Vdc隔离电压。

• 可靠度试验:>1,500,000 hrs。

• 操作环境温度:-40℃ 至 +85℃。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Input Voltage	Output Voltage	Output Current	Efficiency
	Vdc	Vdc	mA	%Typ
69D-24S05CN	9-36	5	600	75
69D-24S12CN	9-36	12	250	80
69D-24S15CN	9-36	15	200	75
69D-24D05CN	9-36	±5	±300	75
69D-24D12CN	9-36	±12	±125	75
69D-24D15CN	9-36	±15	±100	75
69D-48S05CN	18-72	5	600	75
69D-48S12CN	18-72	12	250	80
69D-48S15CN	18-72	15	200	75
69D-48D05CN	18-72	±5	±300	75
69D-48D12CN	18-72	±12	±125	75
69D-48D15CN	18-72	±15	±100	75

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Types				4:1
Filter	Capacitor

Output Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance				±2	%
Short Circuit Protection	Continuous
Line Regulation				± 0.5	%
Load Regulation	Single			± 0.5	%
Load Regulation	Dual			± 2.0	%
Ripple & Noise	BW=DC To 20MHz			100	mVp-p
Transient response setting time	50% load step change		350		us

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency			200		KHz
Operating Temperature		-40		+85	℃
Humidity	Non Condensing			95	%
Cooling	Free air Convection
Case Material	Nickel Coated Copper With Non-Conductive Base
Weight		16.2			g
Dimensions		31.60 x 20.10 x 11.0			mm

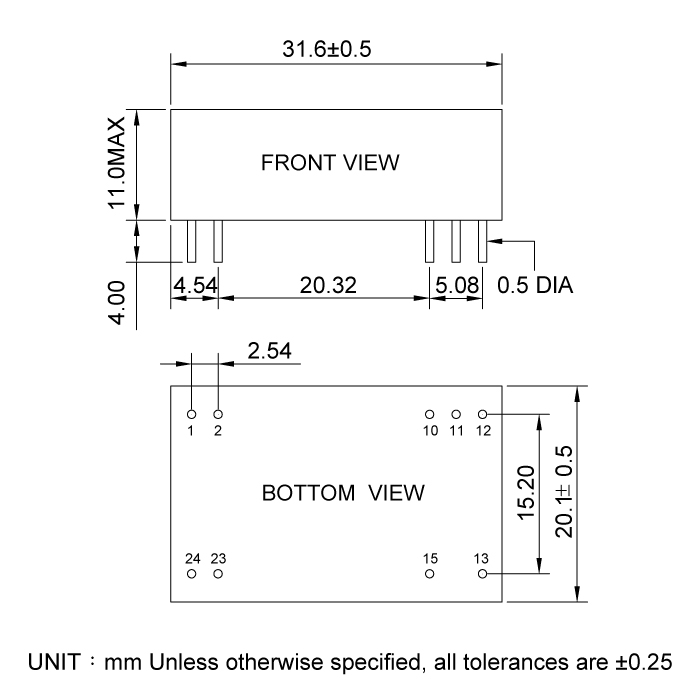

Dimension
