93D 系列 60瓦 3KV隔离电压 2:1宽输入 直流对直流电源转换器

功能&特点

• 60瓦 DIL 工业标准包装。

• 宽输入2:1电压范围。

• 100%高温预烧测试。

• 效率高达88%。

• 可提供客制化。

• 符合UL94V-0规范包装材质。

• 操作环境温度:-40°C 至 +85°C。

• 产品保固3年。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Input Voltage	Input Current		Output Voltage	Output Current	Efficiency
	Vdc	No-Load (mA TYP)	Full Load (mA TYP)	Vdc	Full Load (mA)	%TYP
93D-12S05RNL	9-18	40	5208	5	10000	80
93D-12S12RNL	9-18	40	5882	12	5000	85
93D-12S15RNL	9-18	40	5814	15	4000	86
93D-12D05RNL	9-18	40	5144	±5	±5000	81
93D-12D12RNL	9-18	40	5747	±12	±2500	87
93D-12D15RNL	9-18	40	5747	±15	±2000	87
93D-24S05RNL	18-36	30	2572	5	10000	81
93D-24S12RNL	18-36	30	2841	12	5000	88
93D-24S15RNL	18-36	30	2841	15	4000	88
93D-24D05RNL	18-36	30	2572	±5	±5000	81
93D-24D12RNL	18-36	30	2874	±12	±2500	87
93D-24D15RNL	18-36	30	2841	±15	±2000	88
93D-48S05RNL	36-72	20	1270	5	10000	82
93D-48S12RNL	36-72	20	1420	12	5000	88
93D-48S15RNL	36-72	20	1420	15	4000	88
93D-48D05RNL	36-72	20	1270	±5	±5000	82
93D-48D12RNL	36-72	20	1437	±12	±2500	87
93D-48D15RNL	36-72	20	1437	±15	±2000	87

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Types				2:1
Filter	Pi Network
Protection	Fuse Recommended

Output Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	Full load@Vin(nom.)			±2	%
Short Circuit/Restart Protection	Hiccup,automatic recovery
Over Load Protection		120	150	180	%
Line Regulation	Single & Dual (H/L to L/L)			±0.5	%
Load Regulation	Single & Dual (Balance Load), 25% TO 100% load			±0.5	%
Cross Regulation	Dual (25% to 100% load)			±5	%
Ripple & Noise	BW=DC To 20MHz (with 1uF Cap.)			150	mVp-p
Transient response setting time	25% load step change			400	us
Capacitive load				1500	uF
External Trim Adj. Range				±10	%

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency			50		KHz
Operating Temperature	With derating	-40		+85	℃
Humidity	Non Condensing			95	%
Cooling	Natural Convection (20LFM)
Case Material	Six-Side Shielded Case	Nickel Coated with Non-Conductive Base
Weight		227			g
Dimensions		76.7 x 66.5 x 21.6			mm
Potting Material		Epoxy (UL94V-0 rated)
Radiated Emissions	EN55022	CLASS A
Conducted  Emissions	EN55022	CLASS A
Isolation Voltage	For 10 seconds			3000	VDC
MTBF	MIL-HDBK-217F @25℃ , Ground Benign	299424			Hours
Storage Temperature		-55		+125	℃
Case Temperature				+90	℃
Isolation Capacitance				2500	pF

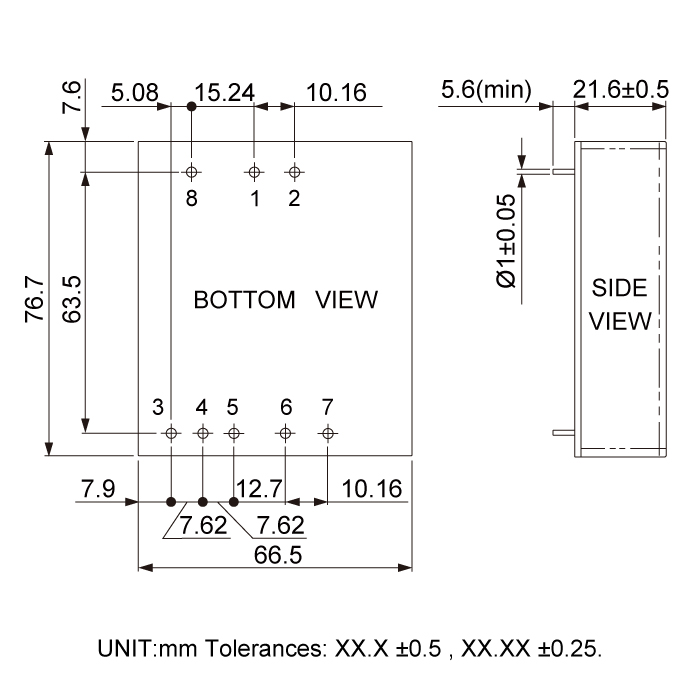

Dimension
