51F/53F系列 单埠 10/100 Base-T 180° 直插式 RJ45变压器模组

功能&特点

• 磁性设计支援每种PHY。

• 符合或超过IEEE 802.3 和 ANSI X3.263标准，包括具有8mA偏置的350uH min OCL。

• 根据IEEE 802.3要求，最小为1500Vrms隔离。

---

Electrical Specifications@25°C; Operating Temperature 0°C to 70°C

Part Number	Turns Ratio ±5%		LEDs (L/R)	Insertion Loss (dB MAX)	Return Loss (dB MIN @100Ω ±15Ω)
	TX	RX		0.3-100 MHz	1-30 MHz	40 MHz	50 MHz	60-80 MHz
51F-1202GYD2NL	1CT: 1CT	1CT: 1CT	G/Y	-1.0	-18	-16	-12	-10

Part Number	Cross Talk (dB MIN)			Common Mode Rejection (dB MIN)			Hipot (Vrms)
	30 MHz	60 MHz	100 MHz	30 MHz	60 MHz	100 MHz
51F-1202GYD2NL	-40	-35	-30	-30	-20	-20	1500

Electrical Specifications@25°C; Operating Temperature -40°C to 85°C

Part Number	Turns Ratio ±2%		LEDs (L/R)	Insertion Loss (dB TYP)	Return Loss (dB TYP @100Ω±15Ω)
	TX	RX		0.3-100 MHz	1-10 MHz	30 MHz	60-80 MHz
53F-1201GYD2NL	1CT: 1CT	1CT: 1CT	G/Y	-1.2	-18	-16	-12

Part Number	Cross Talk (dB TYP)			Common Mode Rejection (dB TYP)		Hipot (Vrms)
	1-10 MHz	30-60 MHz	60-100 MHz	1-50 MHz	50-130 MHz
53F-1201GYD2NL	-30	-30	-30	-30	-20	1500

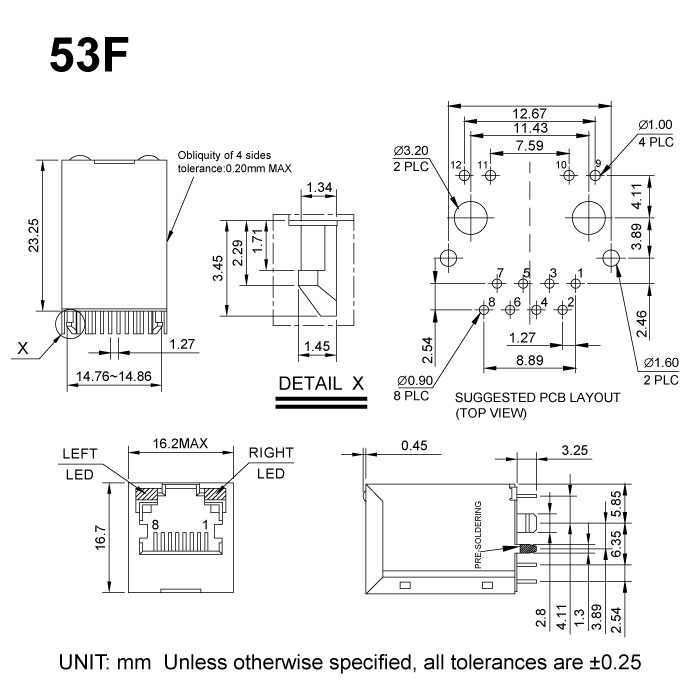

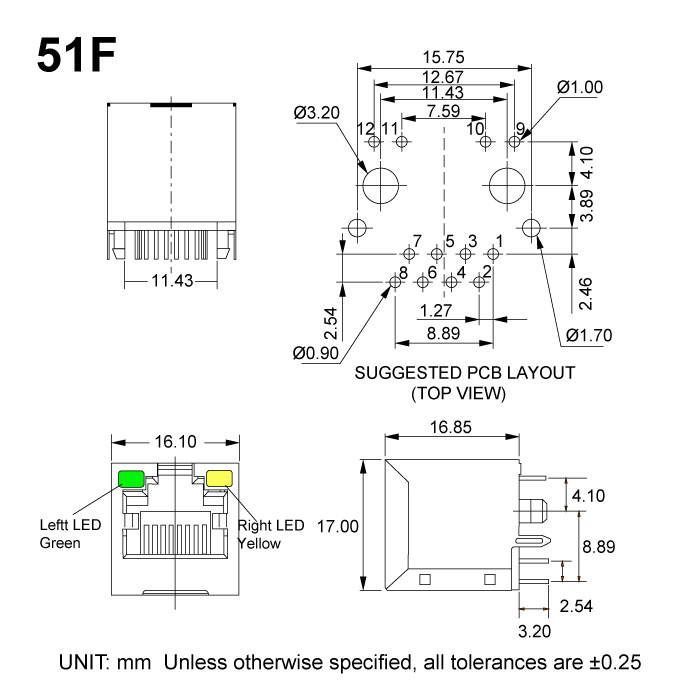

Dimension

 Files Download       51F-53F-Series.pdf
