12D1M 系列 1瓦 6KV隔离电压 医疗应用 直流对直流电源转换器

功能&特点

• 7PIN SIP 包装。

• 效率高达81%。

• 加强绝缘。

• 流经患者之漏电流: 最大 2μA。

• 非稳压输出类型。

• 内部为SMD结构。

• 工业标准引脚。

• 操作环境温度:-40℃ 至 +85℃。

• 依据EN60601-1, ANSI/AAMI ES60601-1规范设计。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Output Voltage	Output Current	Efficiency	Max. Capacitive Load(Note)
	Vdc	mA	%Min/Typ	uF
12D1M-05S05N	5	200	74/78	1000
12D1M-05S12N	12	84	72/76	470
12D1M-05S15N	15	67	72/76	470
12D1M-12S05N	5	200	73/77	1000
12D1M-12S12N	12	84	77/81	470
12D1M-12S15N	15	67	77/81	470
12D1M-24S05N	5	200	72/76	1000
12D1M-24S12N	12	84	74/78	470
12D1M-24S15N	15	67	74/78	470
12D1M-05D05N	±5	±100	74/78	470
12D1M-05D09N	±9	±56	76/80	470
12D1M-05D12N	±12	±42	70/74	220
12D1M-05D15N	±15	±34	72/76	220
12D1M-12D05N	±5	±100	73/77	470
12D1M-12D09N	±9	±56	76/80	470
12D1M-12D12N	±12	±42	69/73	220
12D1M-12D15N	±15	±34	71/75	220
12D1M-24D05N	±5	±100	71/75	470
12D1M-24D09N	±9	±56	75/79	470
12D1M-24D12N	±12	±42	72/76	220
12D1M-24D15N	±15	±34	72/76	220

Note:

The capacitive loads of positive and negative outputs are identical.

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Types	Vo, Io Nom			±10	%
Filter	Capacitor

Output Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	100% full load			±5	%
Line Regulation	For 1.0% OF Vin		1.2		%
Load Regulation	5V (10% To 100% F.L)			20	%
Load Regulation	9V(10% To 100% F.L)			15	%
Load Regulation	12V (10% To 100% F.L)			15	%
Load Regulation	15V(10% To 100% F.L)			15	%
Ripple & Noise	20MHz bandwidth		70	120	mVp-p
Output Short Circuit	(NOTE)			3	s

Note:
Supply voltage must be discontinued at the end of short circuit duration which less than 3s.

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Isolation Capacitance	Input-output, 100KHz/0.1V		5		pF
Switching Frequency	Full load,nominal input		100		KHz
Operating Temperature		-40		+85	℃
Storage Temperature		-55		+125	℃
Humidity	Non Condensing			95	%
Cooling	Free air Convection
Transformer Creepage		5			mm
Transformer Clearance		5			mm
PCB Creepage & Clearance		5.5			mm
Case material	DAP
MTBF	MIL-HDBK-217F @25℃	3500000			Hours
Weight		4.0			g
Dimensions		19.5 x 9.8 x 12.5			mm

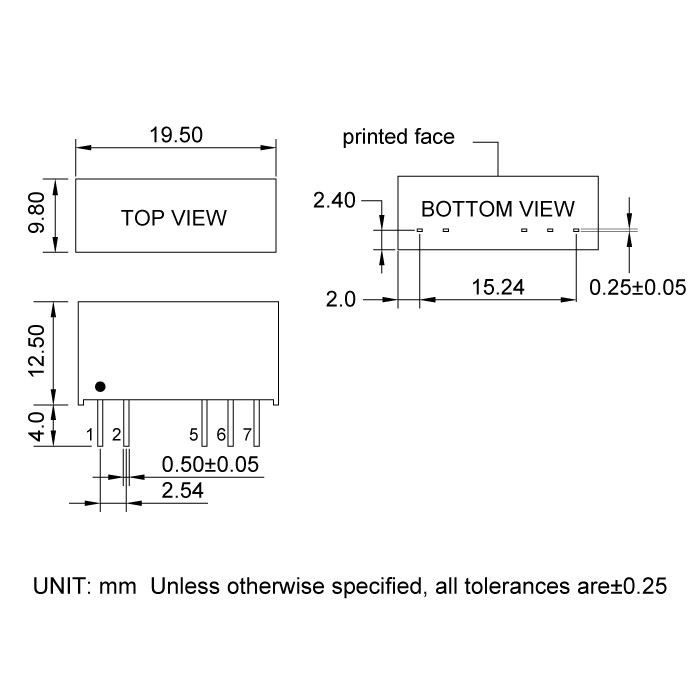

Dimension
