12DZ 系列 1瓦 3KV隔离电压 2:1宽输入 直流对直流电源转换器

功能&特点

• 宽输入2:1电压范围。

• 7PIN SIP 包装。

• 效率高达80%。

• 稳压输出类型。

• 内部为SMD结构 。

• 不需外部零组件。

• 操作环境温度:-40°C 至 +85°C 。

• 工业标准引脚。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Input Voltage	Output Voltage	Output Current	Efficiency
	Vdc	Vdc	mA	%Typ
12DZ-05S05R	4.5-9	5	200	65
12DZ-05S09R	4.5-9	9	112	70
12DZ-05S12R	4.5-9	12	84	70
12DZ-05S15R	4.5-9	15	67	70
12DZ-05S24R	4.5-9	24	42	75
12DZ-12S05R	9-18	5	200	70
12DZ-12S09R	9-18	9	112	72
12DZ-12S12R	9-18	12	84	73
12DZ-12S15R	9-18	15	67	75
12DZ-12S24R	9-18	24	42	80
12DZ-24S05R	18-36	5	200	75
12DZ-24S09R	18-36	9	112	75
12DZ-24S12R	18-36	12	84	78
12DZ-24S15R	18-36	15	67	78
12DZ-24S24R	18-36	24	42	80

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Types	Vo,Io Nom			2:1
Filter	Capacitor

Output Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	100% full load			±5	%
Short Circuit Protection	Continuous
Line Regulation	Regulated			±0.5	%
Load Regulation	Regulated			±1.5	%
Ripple & Noise	Output:5V,9V Types BW=DC To 20MHz			100	mAp-p
Ripple & Noise	Output:12-24V Types BW=DC To 20MHz			1% of Vout	mVp-p
Transient response setting time	50% load step change		350		us

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency	Full load, nominal input		100		KHz
Operating Temperature		-40		+85	℃
Humidity	Non Condensing			95	%
Cooling	Free air Convection
Case Material	DAP
MTBF	MIL-HDBK-217F @25℃	1500000			Hours
Weight		2.7			g
Dimensions		19.5 x 7.1 x 10.0			mm

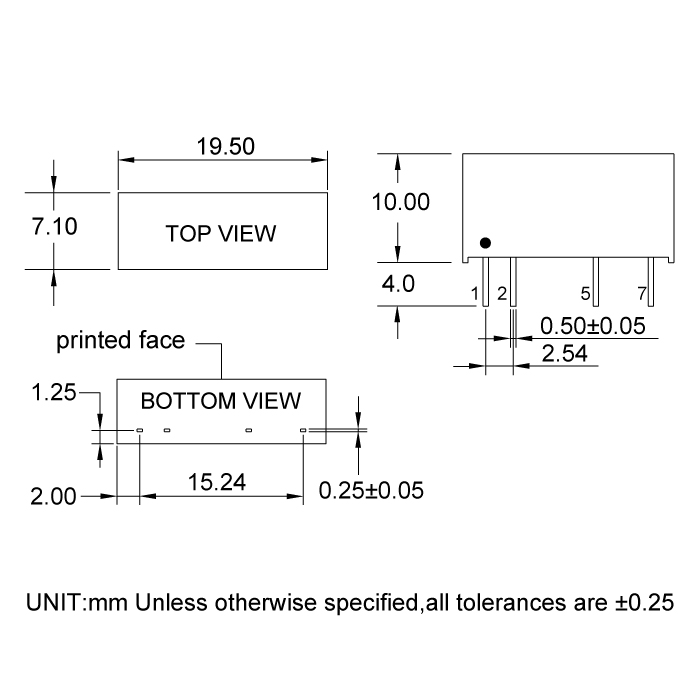

Dimension
