68D12 系列 12瓦 1.5KV隔离电压 2:1宽输入 直流对直流电源转换器

功能&特点

• 12瓦 DIL 包装。

• 宽输入2:1电压范围。

• 100%高温预烧测试。

• 高效率达87%。

• 可提供客制化。

• 具备遥控开关功能。

• 符合UL94V-0规范包装材质。

• 操作环境温度:-40°C 至 +81°C。

• 3年产品保固。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Input Voltage	Input Current		Output Voltage	Output Current	Efficiency
	Vdc	No Load (mA TYP)	Full Load (mA TYP)	Vdc	Full Load (mA)	%Typ
68D12-12S03RNL	9-18	40	1146	3.3	3500	84
68D12-12S05RNL	9-18	40	1176	5	2400	85
68D12-12S12RNL	9-18	40	1149	12	1000	87
68D12-12S15RNL	9-18	40	1149	15	800	87
68D12-12D05RNL	9-18	40	1190	±5	±1200	84
68D12-12D12RNL	9-18	40	1149	±12	±500	87
68D12-12D15RNL	9-18	40	1149	±15	±400	87
68D12-24S03RNL	18-36	30	573	3.3	3500	84
68D12-24S05RNL	18-36	30	588	5	2400	85
68D12-24S12RNL	18-36	30	575	12	1000	87
68D12-24S15RNL	18-36	30	575	15	800	87
68D12-24D05RNL	18-36	30	595	±5	±1200	84
68D12-24D12RNL	18-36	30	575	±12	±500	87
68D12-24D15RNL	18-36	30	575	±15	±400	87
68D12-48S03RNL	36-75	30	286	3.3	3500	84
68D12-48S05RNL	36-75	30	294	5	2400	85
68D12-48S12RNL	36-75	30	287	12	1000	87
68D12-48S15RNL	36-75	30	287	15	800	87
68D12-48D05RNL	36-75	30	298	±5	±1200	84
68D12-48D12RNL	36-75	30	287	±12	±500	87
68D12-48D15RNL	36-75	30	287	±15	±400	87

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Types				2:1
Filter	PI Network

Output Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	Full load@Vin(nom.)			±2	%
Short Circuit Protection	Hiccup, automatic Recovery
Line Regulation				± 0.5	%
Load Regulation	Single Dual(Balance Load)			± 0.5 ± 0.5	%
Cross Regulation	Dual (25% To 100% Load)			±5	%
Ripple & Noise	Output:3-15V TYPES BW=DC To 20MHz			100	mVp-p
	Output > 15V TYPES BW=DC To 20MHz			1% of Vout	mVp-p
Transient response setting time	25% load step change		350		us

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Voltage			1500		Vdc
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency			400		KHz
Operating Temperature	With derating	-40		+81	℃
Storage Temperature		-55		+125	℃
Humidity	Non Condensing			95	%
Cooling	Natural Convection (20LFM)
Case Material	Nickel Coated Copper With Non-Conductive Base
MTBF	MIL-HDBK-217F@25℃	900000			Hours
Weight		17.5			g
Dimensions		31.60 x 20.10 x 10.00			mm

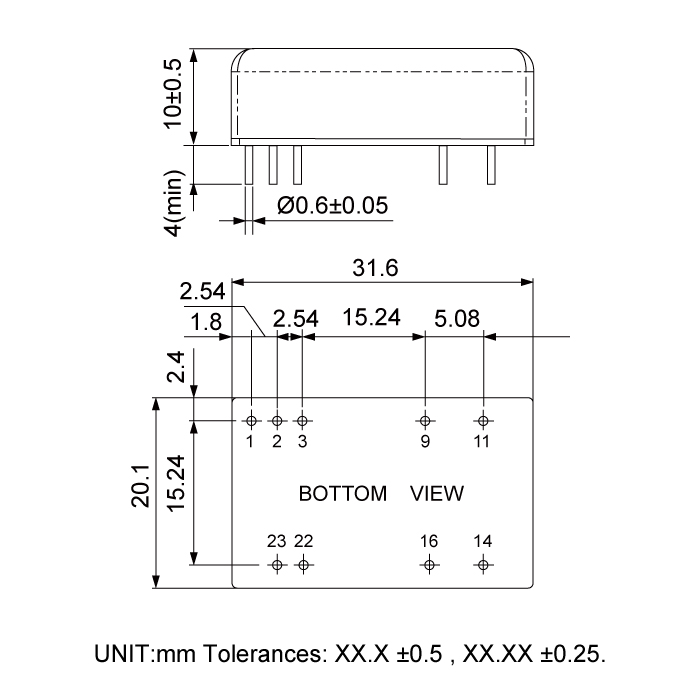

Dimension
