16D-Single 系列 1瓦 1KV隔离电压 2:1宽输入 直流对直流电源转换器

功能&特点

• 宽输入2:1电压范围。

• 效率高达85%。

• 稳压输出类型。

• 低杂讯。

• 内部为SMD结构。

• 操作环境温度:-40~+85℃。

• 工业标准引脚。

• 连续性短路保护线路，採用电流回馈模式。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Input Voltage	Output Voltage	Output Current	Efficiency
	Vdc	Vdc	mA	%Typ
16D-05S05R*2NL	5-9	5	200	60
16D-05S09R*2NL	5-9	9	111	70
16D-05S12R*2NL	5-9	12	84	70
16D-05S15R*2NL	5-9	15	67	70
16D-05S24R*2NL	5-9	24	42	70
16D-12S05R*2NL	9-18	5	200	70
16D-12S09R*2NL	9-18	9	111	80
16D-12S12R*2NL	9-18	12	84	80
16D-12S15R*2NL	9-18	15	67	80
16D-12S24R*2NL	9-18	24	42	80
16D-24S05R*2NL	18-36	5	200	75
16D-24S09R*2NL	18-36	9	111	80
16D-24S12R*2NL	18-36	12	84	80
16D-24S15R*2NL	18-36	15	67	80
16D-24S24R*2NL	18-36	24	42	80
16D-48S05R*2NL	36-72	5	200	70
16D-48S09R*2NL	36-72	9	111	80
16D-48S12R*2NL	36-72	12	84	80
16D-48S15R*2NL	36-72	15	67	80
16D-48S24R*2NL	36-72	24	42	80

Note:
No suffix "2" is standard PIN Connection e.g,16D-24S24RNL,16D-05S15RNL
add suffix "2" for PIN5,8 NC e.g, 16D-24S24R2NL 16D-05S15R2NL

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Types	Vo,Io Nom			2:1
Filter	Capacitor

Output Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	100% full load			±3	%
Short Circuit Protection	Continuous
Line Regulation	Regulated			±0.5	%
Load Regulation	Regulated			±0.8	%
Ripple & Noise	Output:5-9V Types BW=DC To 20MHz			100	mVp-p
Ripple & Noise	Output:12-24V Types BW=DC To 20MHz			1% of Vout	mVp-p
Transient response setting time	50% load step change		350		us

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency	Full load, nominal input		100		KHz
Operating Temperature		-40		85	℃
Humidity	Non Condensing			95	%
Cooling	Free air Convection
Case Material	DAP
MTBF	MIL-HDBK-217F @25℃	1500000			Hours
Weight		4.5			g
Dimensions		21.8 x 9.2 x 11.1			mm

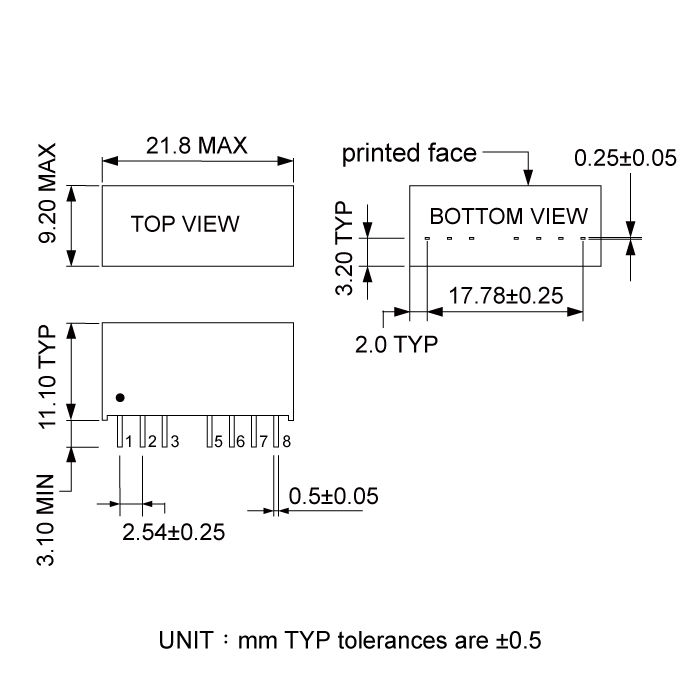

Dimension
