12DZ-2W 系列 2瓦 3KV隔离电压 2:1宽输入 直流对直流电源转换器

功能&特点

• 宽输入2:1电压范围。

• 7PIN SIP 包装。

• 效率高达83%。

• 稳压输出类型。

• 内部为SMD结构。

• 不需外部零组件。

• 操作环境温度:-40℃ 至 +85℃ 。

• 工业标准引脚。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Input Voltage	Output Voltage	Output Current	Efficiency
	Vdc	Vdc	mA	%Typ
12DZ-05S05R2W	4.5-9	5	400	70
12DZ-05S09R2W	4.5-9	9	222	72
12DZ-05S12R2W	4.5-9	12	167	75
12DZ-05S15R2W	4.5-9	15	133	78
12DZ-05S24R2W	4.5-9	24	84	80
12DZ-12S05R2W	9-18	5	400	75
12DZ-12S09R2W	9-18	9	222	78
12DZ-12S12R2W	9-18	12	167	80
12DZ-12S15R2W	9-18	15	133	80
12DZ-12S24R2W	9-18	24	84	83
12DZ-24S05R2W	18-36	5	400	76
12DZ-24S09R2W	18-36	9	222	78
12DZ-24S12R2W	18-36	12	167	80
12DZ-24S15R2W	18-36	15	133	80
12DZ-24S24R2W	18-36	24	84	83

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Types	Vo,Io Nom			2:1
Filter	Capacitor

Output Specifications

Parameters	Conditions	Min	Typ	Max>	Units
Voltage Tolerance	100% full load			±5	%
Short Circuit Protection	Continuous
Line Regulation	Regulated			± 0.5	%
Load Regulation	Regulated			±1.5	%
Ripple & Noise	Output:5V,9V Types BW=DC To 20MHz			100	mVp-p
Ripple & Noise	Output:12-24V Types BW=DC To 20MHz			1% of Vout	mVp-p
Transient response setting time	50% load step change		350		us

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency	Full load, nominal input		100		KHz
Operating Temperature		-40		+85	℃
Humidity	Non Condensing			95	%
Cooling	Free air Convection
Case Material	DAP
MTBF	MIL-HDBK-217F @25℃	1500000			Hours
Weight		2.7			g
Dimensions		19.5 x 7.1 x 10.0			mm

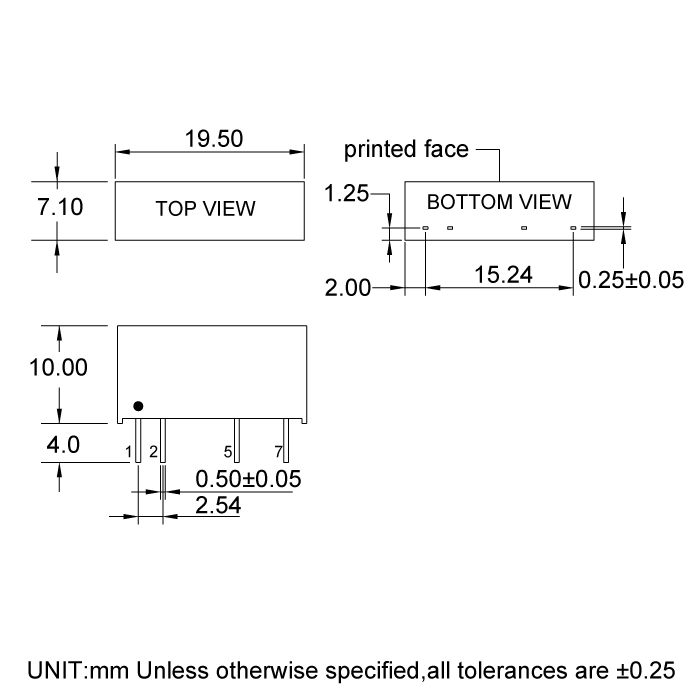

Dimension
