GA10D系列 10~12瓦 4KVac隔离电压 稳压输出 交流对直流电源转换器

功能&特点

• 通用输入电压 90～264VAC。

• 效率高达85%。

• 短路／过载保护。

• 塑胶外壳全封装。

• 产品保固3年。

• 符合RoHS认证。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Output Wattage	Output Voltage	Output Current	Ripple & Noise	Efficiency
	(W)	(VDC)	(mA)	(mV) max (Note)	(TYP %)
GA10D-S03	6.6	3.3	2000	150	72
GA10D-S05	10.0	5	2000	150	75
GA10D-S10	10.0	10	1000	150	80
GA10D-S12	12.0	12	1000	150	82
GA10D-S15	12.0	15	800	150	82
GA10D-S24	12.0	24	500	150	85
GA10D-S36	12.0	36	330	240	85
GA10D-S48	12.0	48	250	240	85

Note:
1. Ripple & noise is measured by using 20 MHz bandwidth, measured with a 47uf paralleled with a high-frequency 0.47uf capacitor arcoss each output by full load.
2. Only GA10D-S05-A recognized by CB.

Input Specifications

Parameters	Conditions		Min	Typ	Max	Units
Rated Input Voltage	Vo, Io nom			100 ~ 240		Vac
Voltage Range	Vo, Io nom	AC in	90		264	Vac
		DC in	120		370	Vdc
Line Frequency	Vi nom, Io nom		47	50/60	63	Hz
Inrush Current	Io nom	Vi: 115VAC			10	A
		Vi: 230VAC			20	A

Output Specifications

Parameters	Conditions		Min	Typ	Max	Units
Output Voltage Accuracy	Vi nom,  Io nom	3.3....V Models			± 3	%
		10....48V Models			± 2	%
Minimum Load	Vi nom		0			%
Line Regulation	Io nom, Vi min....i max			± 0.2		%
Load Regulation	Vi nom,  Io min....o nom	3.3V Models		± 1.0		%
		5....48V Models		± 0.5		%
Transient Recovery time	Vi nom, Io nom =  ← → 0.5 Io nom			1000		us
Protection	Over Load		Above 110% rated output power
			Protection type: Recovers automatically after fault condition is removed
	Short Circuit		Recovers automatically after fault condition is removed

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Switching Frequency	Vi nom, Io nom		65		KHz
Isolation Voltage	Input / Output	4KVac / 5mA / 5Secs
Isolation Resistance	Input / Output, @500 Vdc	100			MΩ
Operating Temperature	Refer to Temperature Derating Graph	-40		+70	℃
Storage Temperature	Non Operational	-40		+105	℃
Relative Humidity	Vi nom,Io nom			95	% RH
Safety Standards	Design refer to UL60950-1, IEC60950-1
EMI Conduction & Radiation	EN55022, CLASS B (See Fig. 1 for recommended circuit)
EMS Immunity	EN61000 (See Fig. 1 for recommended circuit)
Dimension	L 50.8 x W 25.4 x H 23.5 mm
Cooling	Free air convection

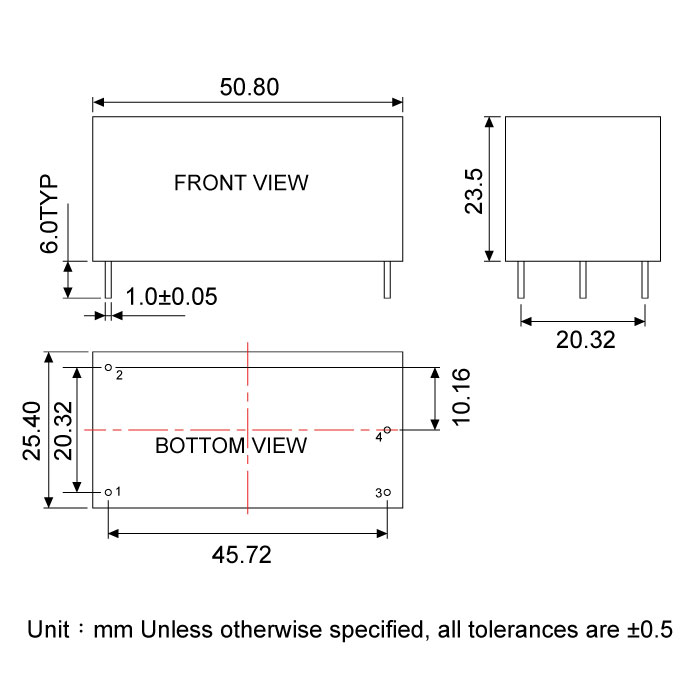

Dimension
