28D-1W 系列 1瓦 1.5KV隔离电压 SMD 直流对直流电源转换器

功能&特点

• 宽输入2:1电压范围。

• 16PIN SMD 包装。

• 效率高达83%。

• 稳压输出类型。

• 内部为SMD结构。

• 不需外部零组件。

• 操作环境温度:-40℃ 至 +85℃。

• 工业标准引脚。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Input Voltage Range	Output Voltage	Output Current	Efficiency
	Vdc	Vdc	mA	% TYP
28D-05S03R1W	4.5-9	3.3	303	68
28D-05S05R1W	4.5-9	5	200	71
28D-05S12R1W	4.5-9	12	84	73
28D-05S15R1W	4.5-9	15	67	71
28D-05D05R1W	4.5-9	±5	±100	68
28D-05D12R1W	4.5-9	±12	±42	70
28D-05D15R1W	4.5-9	±15	±34	71
28D-12S03R1W	9-18	3.3	303	71
28D-12S05R1W	9-18	5	200	75
28D-12S12R1W	9-18	12	84	78
28D-12S15R1W	9-18	15	67	78
28D-12D05R1W	9-18	±5	±100	71
28D-12D12R1W	9-18	±12	±42	78
28D-12D15R1W	9-18	±15	±34	76
28D-24S03R1W	18-36	3.3	303	71
28D-24S05R1W	18-36	5	200	78
28D-24S12R1W	18-36	12	84	82
28D-24S15R1W	18-36	15	67	83
28D-24D05R1W	18-36	± 5	±100	74
28D-24D12R1W	18-36	±12	±42	78
28D-24D15R1W	18-36	±15	±34	80
28D-48S03R1W	36-75	3.3	303	70
28D-48S05R1W	36-75	5	200	74
28D-48S12R1W	36-75	12	84	80
28D-48S15R1W	36-75	15	67	80
28D-48D05R1W	36-75	±5	±100	74
28D-48D12R1W	36-75	±12	±42	77
28D-48D15R1W	36-75	±15	±34	78

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	Vo, Io Nom			2:1
Filter	Capacitor

Output Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	100% full load			±2	%
Short Circuit Protection	Continuous
Line Regulation	Regulated			± 0.5	%
Load Regulation	Regulated			± 0.8	%
Ripple & Noise	BW = DC To 20MHz			100	mVp-p
Transient Response Setting Time	50% load step change		350		us

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency	Full load, nominal input		100		KHz
Operating Temperature		-40		+85	℃
Humidity	Non Condensing			95	%
Cooling	Free air Convection
Case material	DAP
MTBF	MIL-HDBK-217F @25℃	1000000			Hours
Weight			3.9		g
Dimensions		24.1 x 14.35 x 10.25			mm

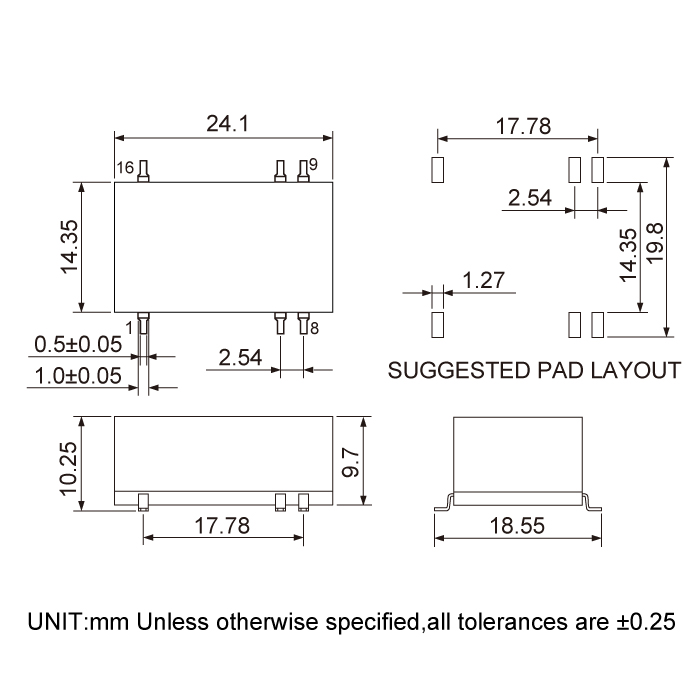

Dimension
