95DW 系列 20瓦 1.5KV隔离电压 4:1宽输入 直流对直流电源转换器

功能&特点

• 20瓦 DIL包装。

• 宽输入4:1电压范围。

• 100%高温预烧测试。

• 效率高达85%。

• 提供客制化。

• 具备遥控开关功能。

• 符合UL94V-0规范包装材质。

• 操作环境温度:-40°C 至 +85°C。

• 产品保固3年。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Input Voltage	Input Current		Output Voltage	Output Current	Efficiency
	Vdc	No-Load (mA TYP)	Full Load (mA TYP)	Vdc	Full Load (mA)	%TYP
95DW-24S05RNL	9-36	25	1016	5	4000	82
95DW-24S12RNL	9-36	25	982	12	1670	85
95DW-24S15RNL	9-36	25	978	15	1330	85
95DW-24D12RNL	9-36	25	991	±12	± 833	84
95DW-24D15RNL	9-36	25	991	±15	± 666	84
95DW-48S05RNL	18-72	20	508	5	4000	82
95DW-48S12RNL	18-72	20	491	12	1670	85
95DW-48S15RNL	18-72	20	489	15	1330	85
95DW-48D12RNL	18-72	20	495	±12	± 833	84
95DW-48D15RNL	18-72	20	495	± 15	± 666	84

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Types				4:1
Filter	Pi TYPE

Output Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	Full load@Vin(nom.)			± 2	%
Short Circuit Protection	Hiccup,automatic recovery
Line Regulation				± 0.5	%
Load Regulation	Single(25% to 100% load)			± 0.5	%
Load Regulation	Dual(Balance load), 25% to 100% load			± 2.0	%
Cross Regulation	Dual (25% to 100% load)			± 5.0	%
Ripple & Noise	BW=DC To 20MHz			100	mVp-p
Transient response setting time	25% load step change		350		us

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency			300		KHz
Operating Temperature		-40		+85	°C
Humidity	Non Condensing			95	%
Cooling	Natural Convection (20LFM)
Case Material	Nickel Coated with Non-Conductive Base
Weight		55			g
Dimensions	Package 1	51.4 x 41.6 x 12.3			mm
Dimensions	Package 2	51.0 x 51.0 x 10.3			mm
Potting Material		Epoxy (UL94V-0 rated)
Radiated Emissions	EN55022	CLASS A
Conducted Emissions	EN55022	CLASS A

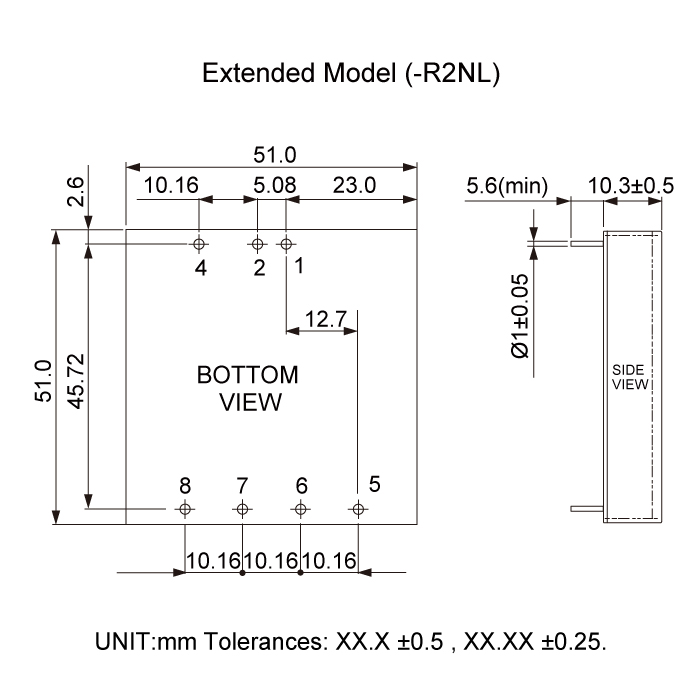

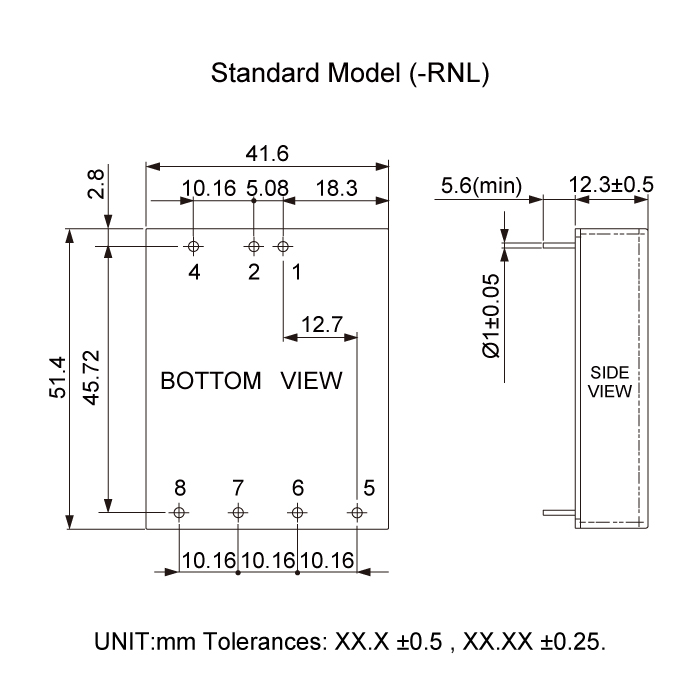

Dimension
