45D 系列 2瓦 3KVrms隔离电压 直流对直流电源转换器

功能&特点

• 24PIN DIL 包装。

• 效率高达70%。

• 稳压输出类型。

• 低杂讯。

• 内部为SMD结构。

• 不需外部零组件。

• 操作环境温度:-40℃ 至 +85℃。

• 工业标准引脚。

---

Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified

Part Number	Output Voltage	Output Current	Efficiency
	Vdc	mA	%TYP
45D-XXS05RNL	5	400	60
45D-XXS09RNL	9	222	60
45D-XXS12RNL	12	167	60
45D-XXS15RNL	15	133	60
45D-XXS24RNL	24	84	60
45D-XXD12RNL	±12	±84	60
45D-XXD15RNL	±15	±67	60
45D-XXD24RNL	±24	±42	60

Note:
1.”XX” Is Input Voltage :05=5Vdc,09=9Vdc,12=12Vdc,15=15Vdc,24=24Vdc,36=36Vdc,48=48Vdc.
2.The input voltage increases, there will be an increase in efficiency.

Input Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	Vo,Io Nom			±10	%
Filter	Capacitor

Output Specifications

Parameters	Conditions	Min	Typ	Max	Units
Voltage Tolerance	100% full load			±5	%
Short Circuit Protection	Continuous
Short Circuit Protection	Automatic
Line Regulation	Regulated			±0.3	%
Load Regulation	Regulated			±0.5	%
Ripple & Noise	BW=DC To 20MHz			50	mVp-p
Transient response setting time	50% load step change		350		us

General Specifications

Parameters	Conditions	Min	Typ	Max	Units
Isolation Resistance	500Vdc	1000			MΩ
Switching Frequency	Full load, nominal input		125		KHz
Operating Temperature		-40		+85	℃
Humidity	Non Condensing			95	%
Cooling	Free air Convection
Case material	DAP
MTBF	MIL-HDBK-217F@25℃	1500000			Hours
Weight		12.8			g
Dimensions		31.8 x 20.30 x 10.20			mm

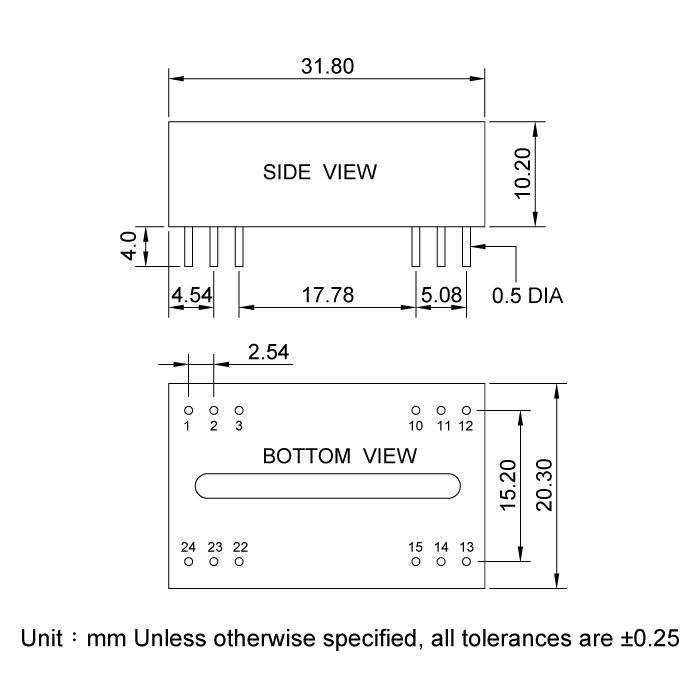

Dimension

 Files Download       45D-Series.pdf

Certification
