70T/72T/74T系列 环形共模扼流圈

功能&特点

• 减少辐射EMI辐射。

• 滤除共模噪声，降低EMI。

• 共模衰减从100KHz到1GHz。

• 通过UL 60950-1认证。

---

Electrical Specifications@25°C; Operating Temperature 0°C to 70°C

Part Number	No. of Lines	Primary Inductance OCL (μH MIN)	Common Mode Attenuation (dB TYP)									DCR (Ω Max)	Page Number Of Mech. & Schem.
			100 KHz	1 MHz	10 MHz	30 MHz	50 MHz	100 MHz	300 MHz	500 MHz	1 GHz
70T-240MANL	2	24	1	14	28	32	33	28	13	5	-	0.30	6M-A
72T-141XBNL	4	140	14	33	44	48	48	43	33	28	19	0.60	8X-B
72T-680LBNL	4	68	7	24	37	41	42	40	31	27	-	0.35	8L-A
74T-102MANL	4	1000	28	41	42	32	22	-	-	-	-	0.70	10M-A

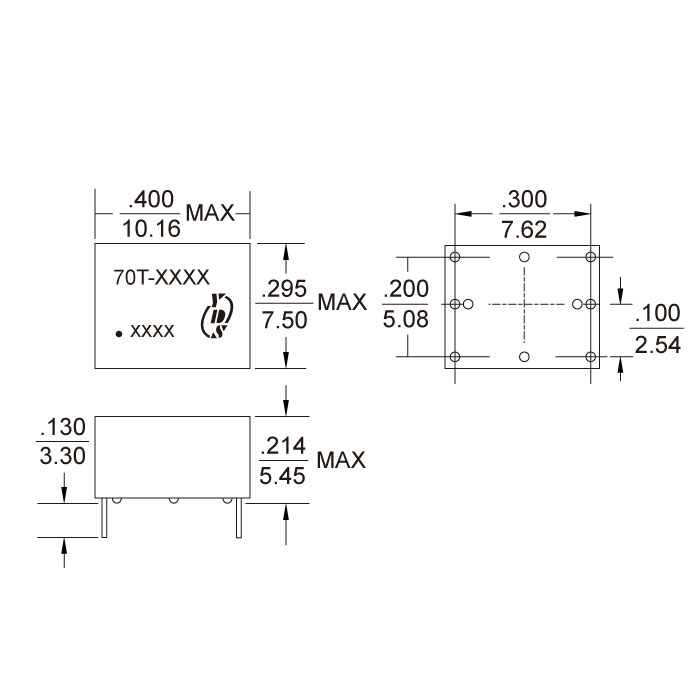

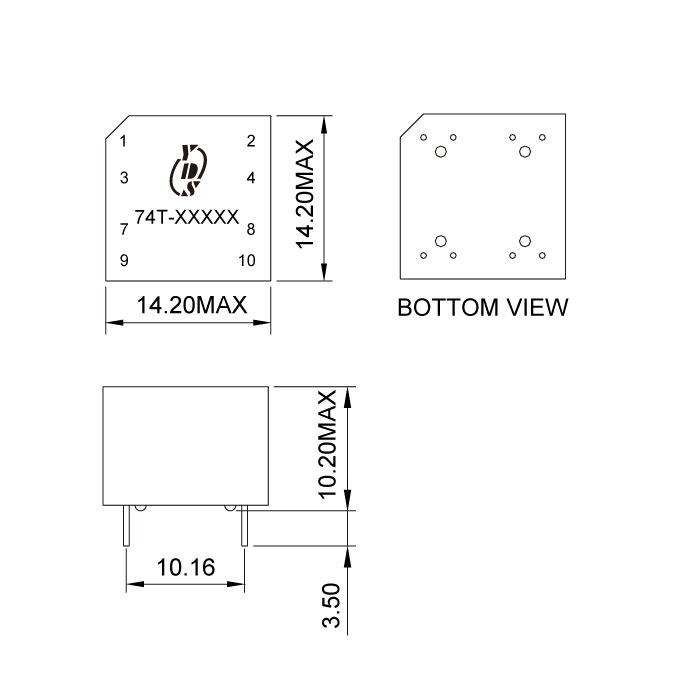

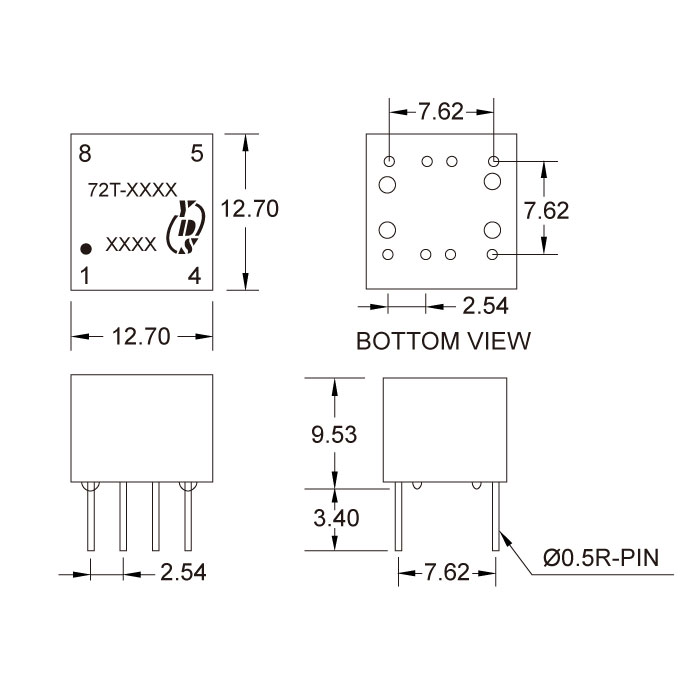

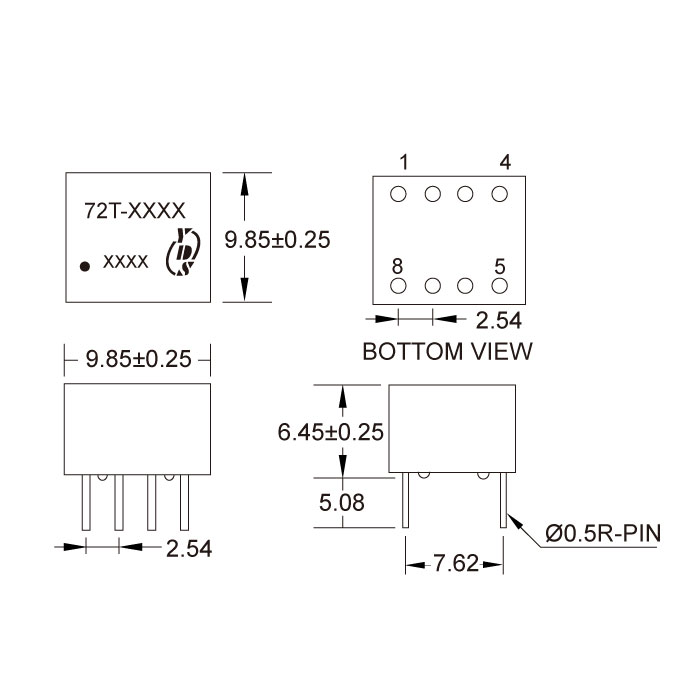

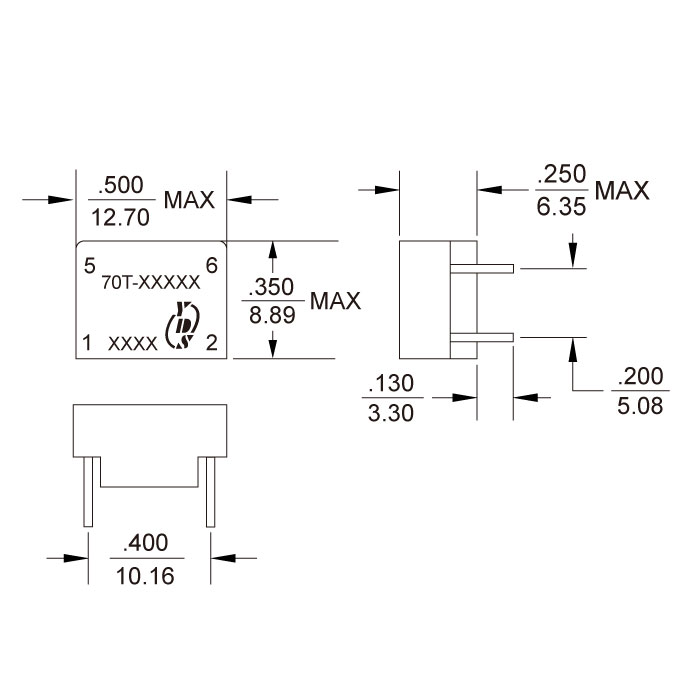

Dimension

 Files Download       70T-72T-74T-Series.pdf

Certification
